Survey Vessel
S/V Anne
Your purpose-built survey solution

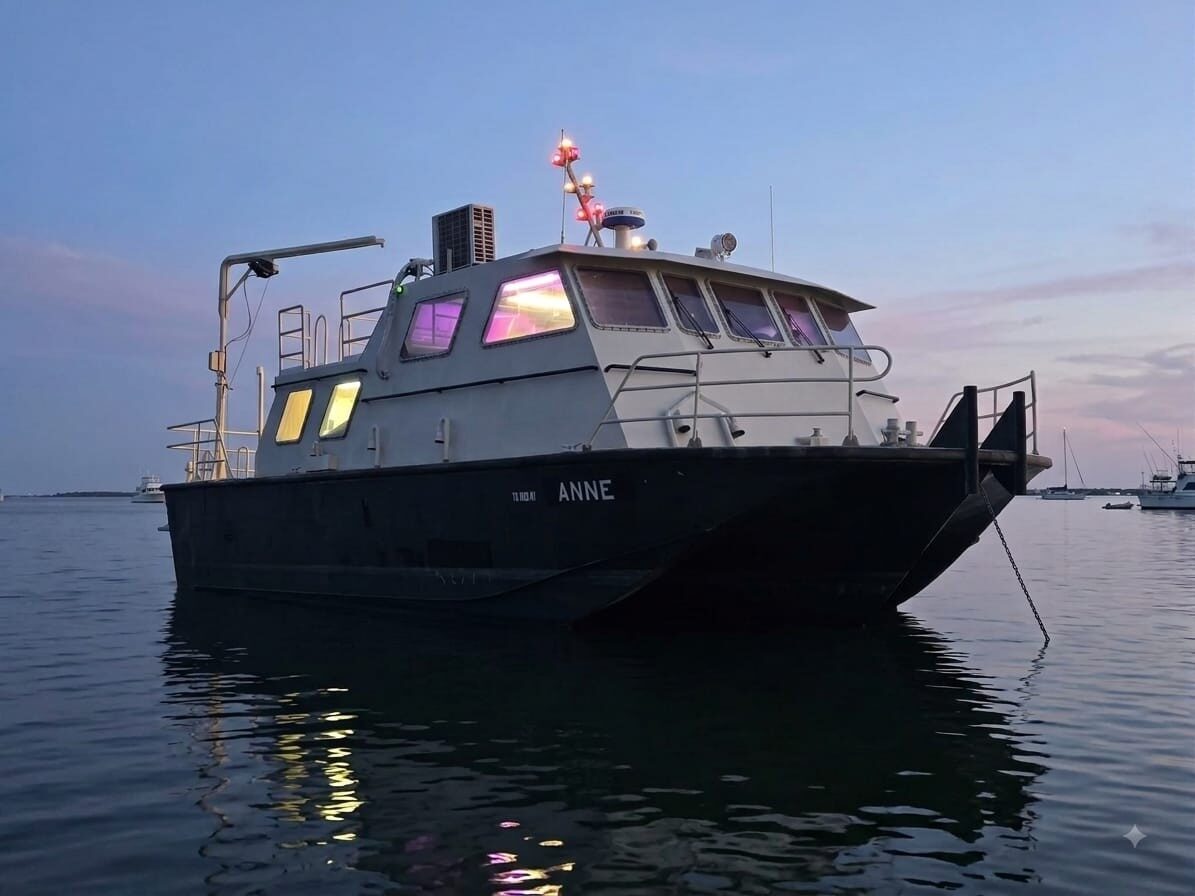

The S/V Anne is a purpose-built 48-foot survey vessel, commissioned by the Army Corps of Engineers in 2000, and completely refurbished in 2026 for commercial Survey applications. Ideal for the scopes of work and marine applications below.
- Nearshore Multibeam scopes like Pipeline Pull in support, DMA installation, Touch Down Monitoring, Mattress installation as-built, Pipeline pre-lay surveys, Visual inspections and GVI Surveys on As-Set pipeline crossings and Pipeline As-Built Surveys.
- Offshore and Inland Waterway Hydrographical & Geophysical surveys as well as Sediment Management support for ports and rivers, state waterways and channels.
- Existing Asset Monitoring & Inspection, merging ROV Photogrammetry, Multibeam and vessel mounted Drone Lidar in a 3D point cloud with sub-cm accuracies. Offshore satellite platforms and subsea assets, harbors, docks, dams, and bridges.
Vessel is operated & staffed by SEASTX.COM
Survey Vessel Data Sheet
General Information
| Owner | Miss Anne LLC. |
|---|---|
| Year Built / Rebuilt | 2000 / 2026 |
| Vessel Type | Survey Vessel |
| Flag State Authority | USA |
| Hull Type | Stolkraft |
| Breakbulk Shipping | Compatible for Intl. shipping |
Dimensions
| Length | 48 feet |
|---|---|
| Breadth | 18 feet |
| Draft | 7 feet |
| Survey work area | 17 x 16 |
| Personnel work area | 17 x 10 |
Capacities
| Fuel | 850 gallons |
|---|---|
| Potable water | 380 gallons |
Machinery
| Main Engines x 2 | Caterpillar 3196 - 600HP |
|---|---|
| Generator | Onan 20KW |
| Fire Suppression | Hiller Systems CO2 |
Performance
| Maximum Speed | 25 knots @ 44 USG/Hr. |
|---|---|
| Fuel Conservation Speed | 4 knots @ 10 USG/Hr. |
| Fuel at 10+ knots | 22 USG/Hr. |
| Generator | 2-3 USG/Hr. |
Navigation & Communication
| Depth Sounder | Furuno FCV-628 |
|---|---|
| Radar Display | Furuno FR-10 10" display |
| Radar Sensor | Furuno DRS4DNXT |
| ID System | Jatron TR-8000MKII AIS |
| VHF | Horizon VLH-3000A |

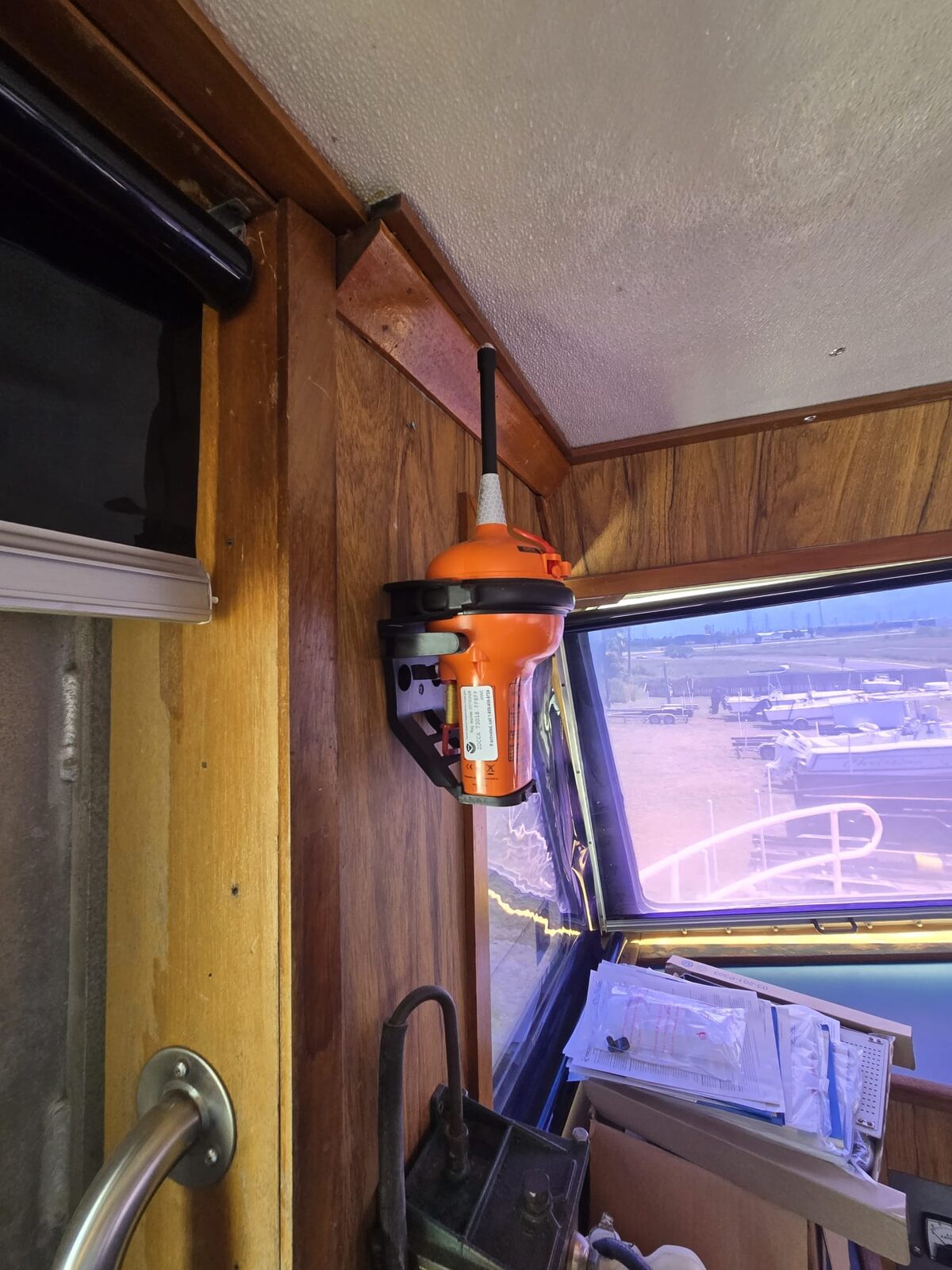

| EPIRB | Jatron Tron 60GPS |
| Charting Program | Rose Pilot, Offshore |
| Internet / Email | Star Link |
Vessel attributes and notes

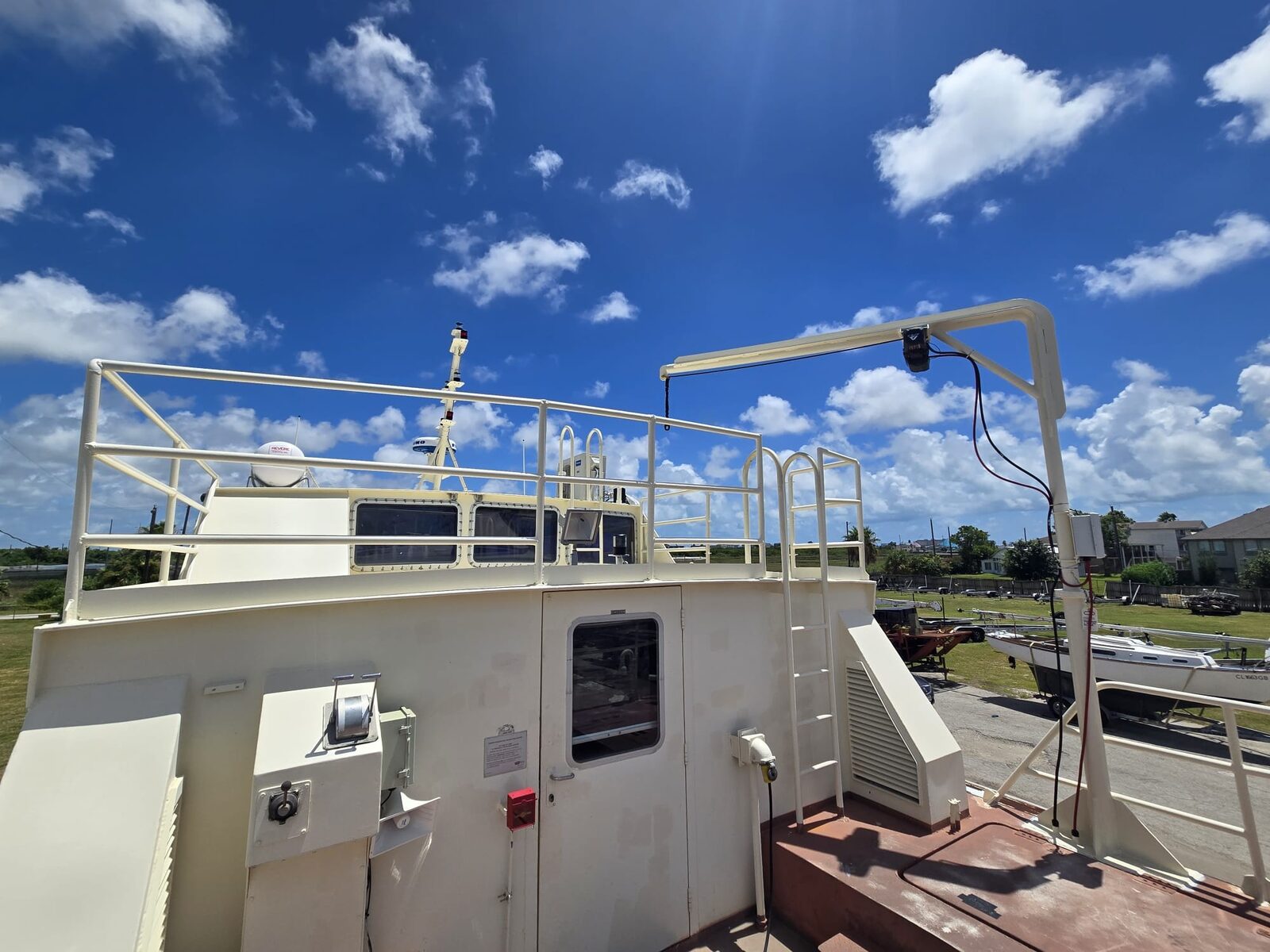

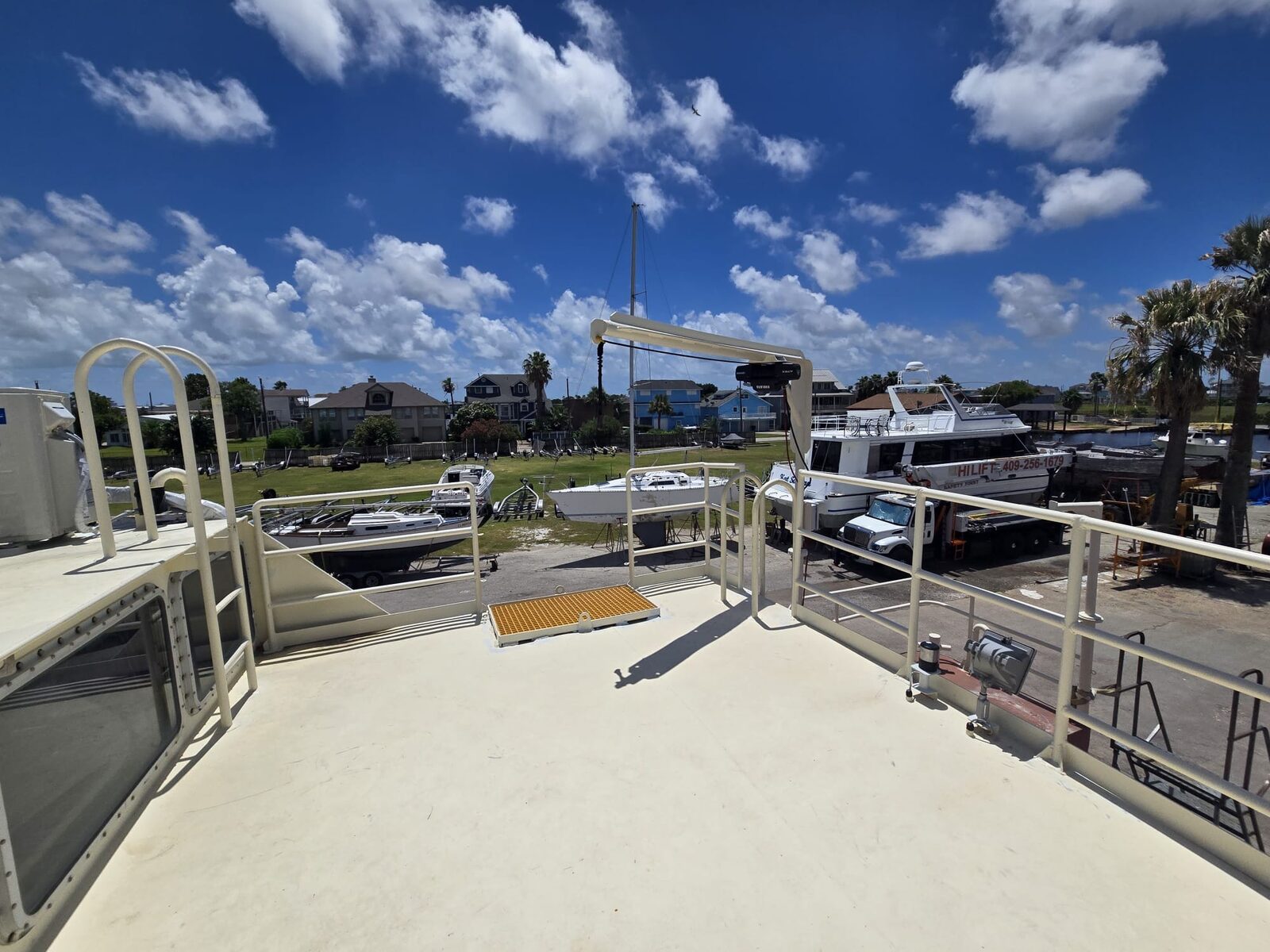

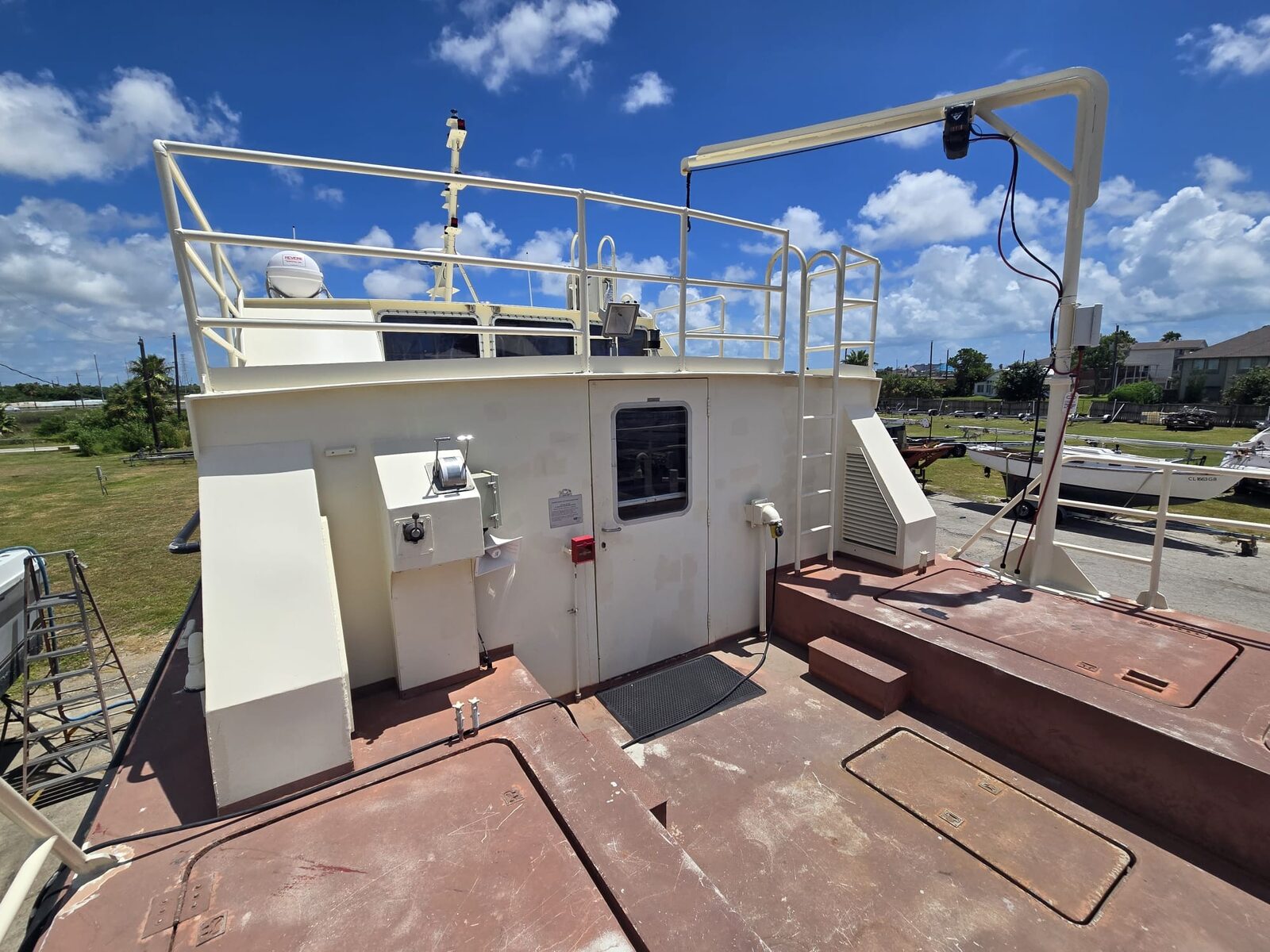

The Anne is fitted with a built-in moonpool that can be used for longer-term projects, while a HighTower universal sonar mount pole is better for shorter-term projects. Equipped with an ROV pad and a 600 lb davit with remote controlled/wired winch as permanent features of the vessel.
The Stolkraft hull consists of a trimaran shape forward that transforms into a catamaran aft. As the vessel moves forward, it forces air beneath the scoops formed by the tri-hulled forebody. The air acts as a cushion that decreases frictional resistance, provides additional lift at higher speeds, and decreases fuel consumption.
S/V Anne’s design provides the capability to operate in higher, rougher sea conditions than is possible from most current smaller survey vessels. It can get to your work area faster than most vessels.
Survey equipment options
Run some or all of these systems for your next project. Note: The below are examples and can be substituted with preferred equivalents.
- Vessel mounted Drone LIDAR systems utilizing Share Slam, EagleMax or equivalent
- Norbit Winghead B44 200kHz-700kHz Multibeam System 4500m
- R2Sonic 2026 versions or equivalents
- EdgeTech 4205 ROV Tri Frequency Sidescan Sonar System
- CEE Hydrosystems CEE-LINE 200kHz Single Beam Echo Sounder
- CEE Hydrosystems CEESCOPE Single Beam Echo Sounder
- Exail Octans 9 Surface Gyrocompass & Motion Sensor
- EdgeTech 3100-424 Portable Sub Bottom Profiling System
- Boomer or bubble pulse with streamer
- Hemisphere Vector VS1000 GNSS Receiver with antenna and correction service
- Geometrics G-882 Magnetometer System and Gradiometer systems
- Capable of accommodating an inspection class ROV up to 500 lbs
Custom mobilization
S/V Anne can help you design, engineer and install a custom survey setup for your project requirements.
Offering a single turn-key package including personnel from SEASTx, who already employ the top-level Surveyors, LBL and MBES people in the world.
SEASTx has seismic equipment and people too. Ask about our seismic gun room, compressors and equipment.
